Description

Features:

-VHF UHF Dual BAND STANDBY, 50-600MHz full band Receiving

-Frequency meter Function

-Cross-band Communication

-FM radio/Air Band Receiving

-VOX (Voice operated Transmission)

-10 Channels America NOAA weather forecast

-Built-in high light Torch
-200 Memory Channels

-Wireless Frequency copy from other radios

-Wireless Radio Replication

-DTMF AND 1750 Tone
-Auto/Manual Emergency Alert

-10-Group Scrambler
-Frequency/DCS/CTCSS Scan

-Digital Signal CTCC/DCS

-1600 mAh Rechargeable Li-ion Battery Pack

-TPYE C and Desktop Cradle Charging

– Frequency Range:

F1:50.0000-76.0000MHz(RX only)

F2:108-.0000-135.9750MHz(RX only)

F3:136.0000-173.9750MHz(TX and RX both)

F4:174.0000-349.9750MHz(RX only)

F5:350.0000-399.9750MHz(RX only)

F6: 400.0000-469.9750MHz (TX and RX both)

F7:470.0000-600.0000MHz(RX only)

FM Radio: 76.000-108.000MHz

Technical Parameters:

Number of channels: 200

Number of FM radios: 16

Frequency stability:±1ppm

Size :115mmX60mmX37.5mm

Weight: 234g

Working temperature: -20℃+60℃

Antenna impedance: 50Ω

Modulation mode: FM: 11KOF3E(12.5KHz), 16K0F3E(25KHz)

Number of NOAA channels: 10

Battery capacity: 1600mAh

Audio Power:≥0.5W

Audio Distortion: ≤10%

Transmitting Power:≤5

Emission Current :≤1.5A

Maximum Frequency Deviation :≤5KHz(25KHz),≤2.5KHz(12.5KHz)

Modulation Distortion: ≤5%

Stray Power:≤7.5uW

Adjacent Channel Power: 70dB(25KHz), 60dB(12.5KHz)

Residual Modulation: 40dB

Package:

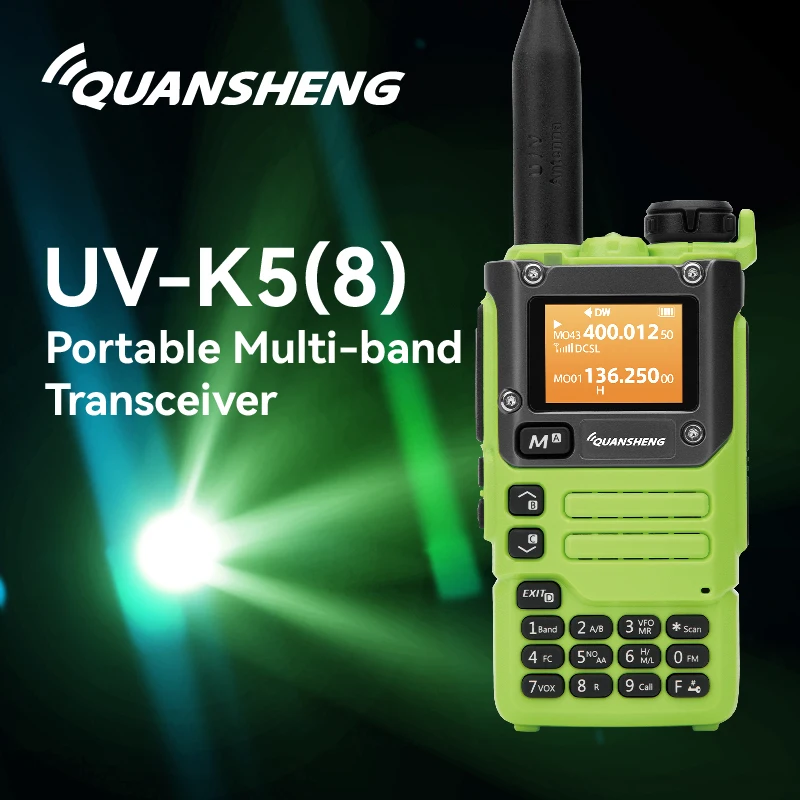

1× UV-K58 Radio Body

1× 7.2V 1600mah Li-ion Battery Pack

1× SMA-Female Dual Band Antenna

1× Belt Clip
1× ENG Manual

1× Desktop Charger ( 110V ~ 240V )

1× Handstrap
